Diesel Engine Timing Tool Kit – Crank & Cam Locking Set for Audi, VW, Seat, Skoda & Ford TDI Engines
This comprehensive timing locking tool kit is designed for use on a wide range of VW Group diesel engines (TDI PD & Common Rail), as well as select Ford Galaxy models.
It allows accurate locking of the camshaft, crankshaft, and injection pump during timing-belt replacement or engine rebuilds.
✅ Applications
Compatible with 1.2, 1.4, 1.6, 1.9, 2.0 TDI PD and Common Rail diesel engines, as well as V6 TDI variants.
Volkswagen (1998–2011)
Lupo, Fox, Polo, Golf, Golf Plus, Bora, Jetta, Beetle, Scirocco, Passat, Sharan, Touran, Tiguan, Caddy, Transporter
Audi (1998–2011)
A2, A3, A4, A5, A6, Q5
Ford (2000–2006)
Galaxy
Seat (1999–2011)
Ibiza, Altea, Leon, Alhambra, Toledo, Arosa, Cordoba
Škoda (2000–2011)
Fabia, Roomster, Octavia, Superb

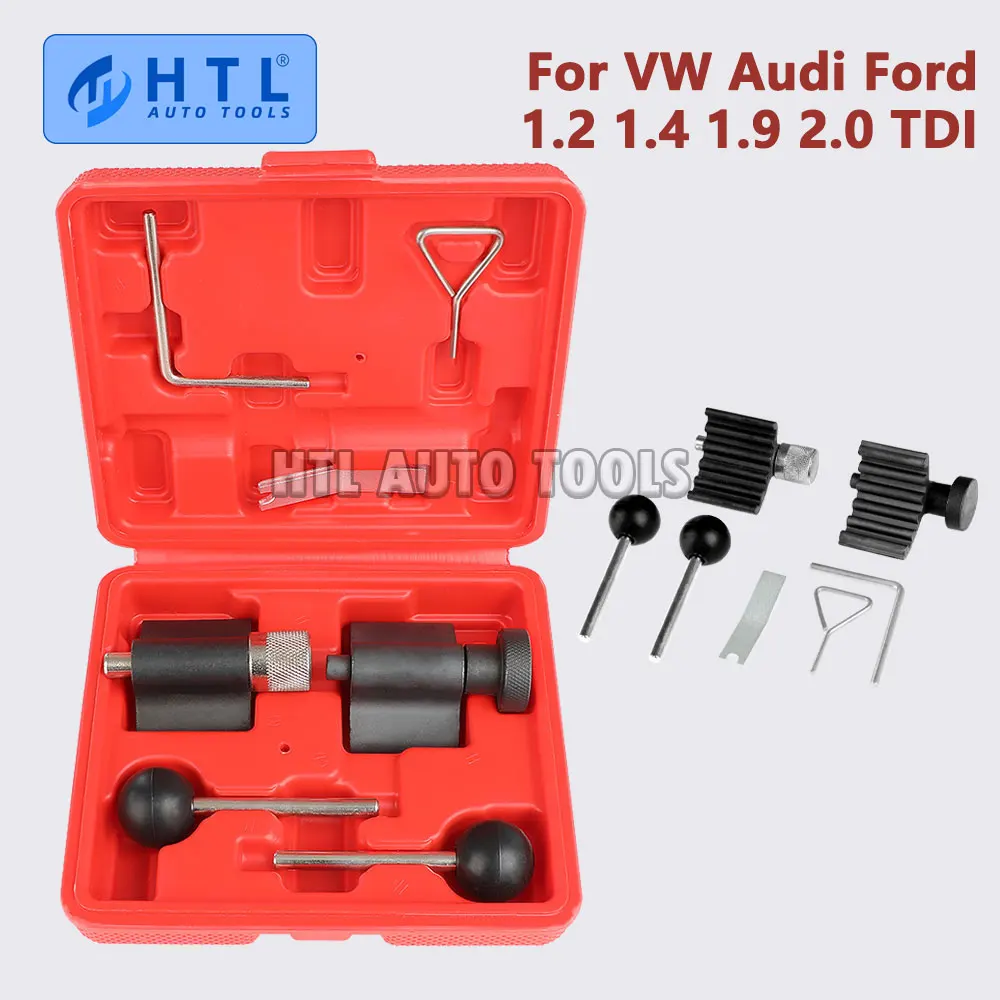

⚙️ Included Tools
-

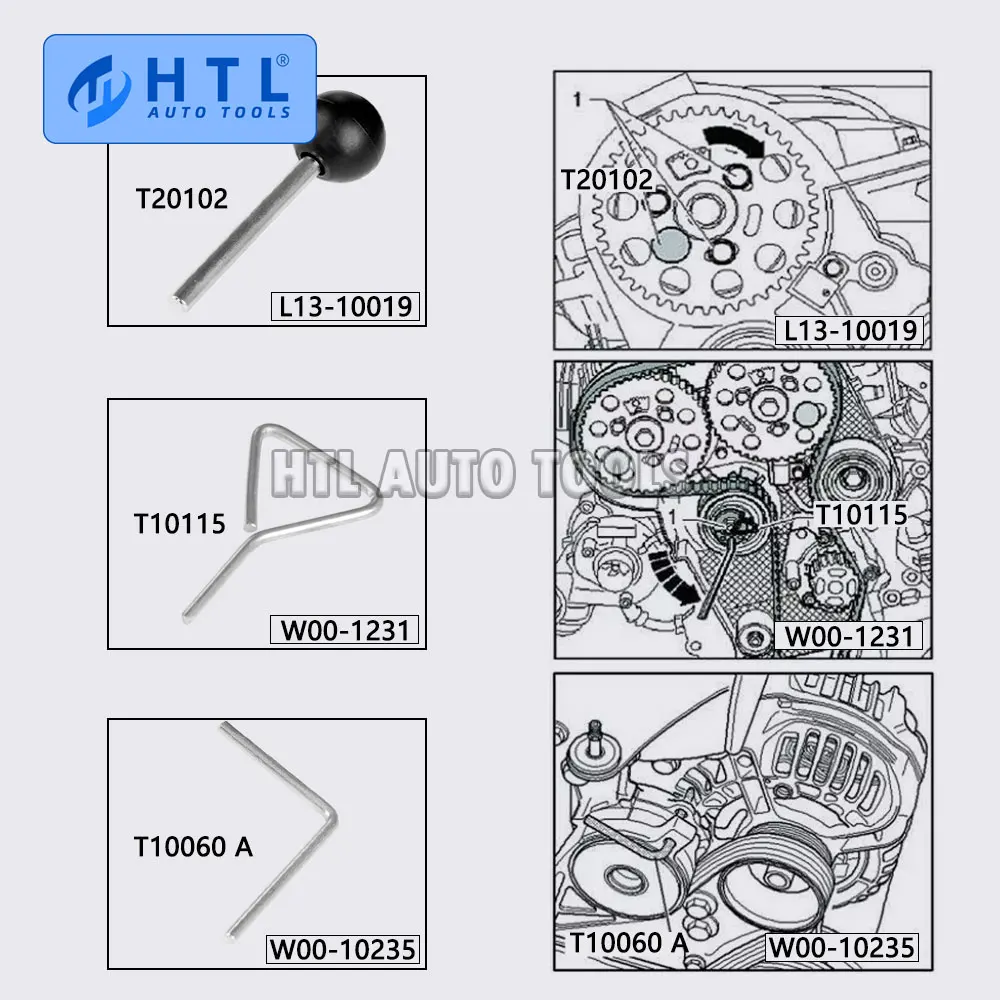

Injection Pump Locking Pins ×2
-

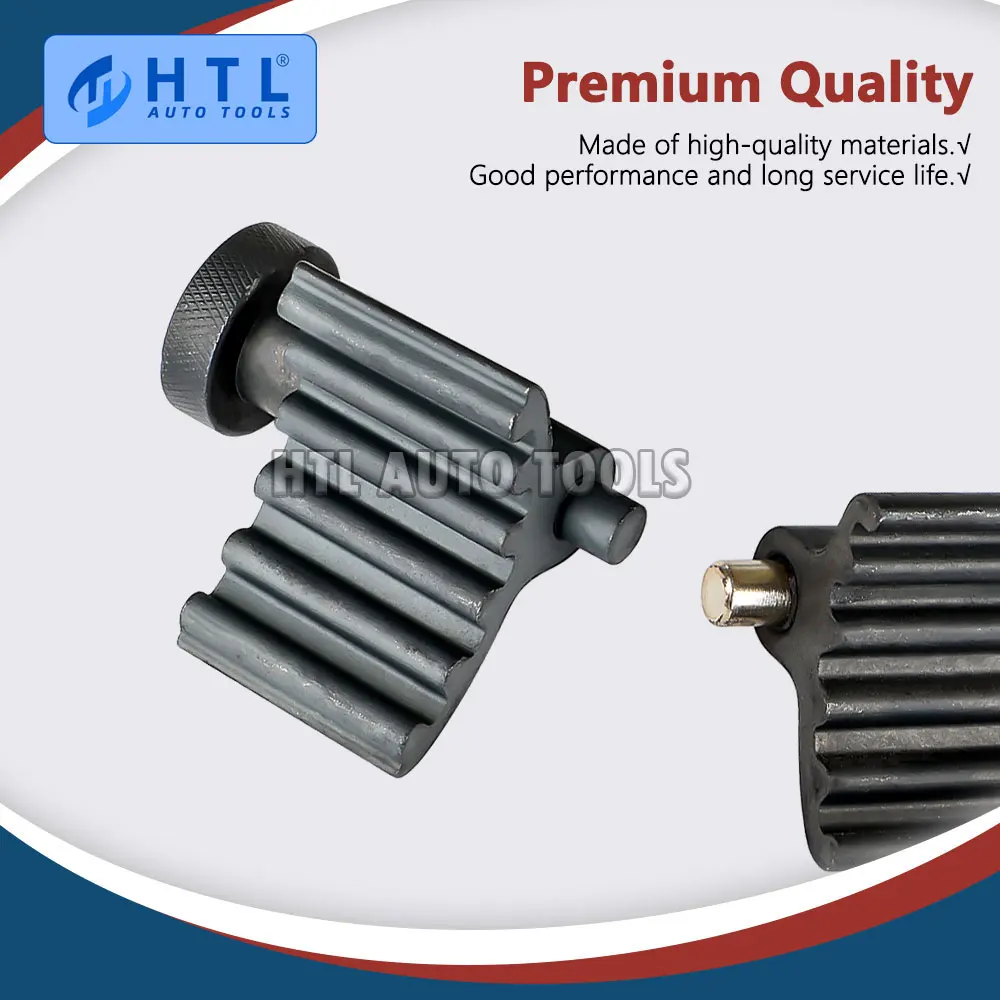

Crankshaft Setting Tool (for bored engines)
-
Crankshaft Setting Tool (for non-bored engines)
-
Tensioner Pulley Locking Pin
-
Auxiliary Drive Belt Tensioner Locking Pin
-
Supplied in a durable plastic storage case
🧩 Engine Code Coverage
1.2 TDI: ANY, AYZ
1.4 TDI: AMF, ATL, BAY, BHC, BNM, BNV
1.9 TDI: AJM, AMG, ANJ, ARL, ARX, ASZ, ATD, ATJ, AUY, AVB, AVF, AVQ, AWX, AXB, AXC, AXR, BEW, BJB, BKC, BKE, BLS, BLT, BMT, BPX, BRB, BRM, BRU, BSU, BSV, BSW, BTB, BVK, BXE, BXF
2.0 TDI: AZV, BKD, BDJ, BDK, BGW, BHW, BKP, BLB, BMA, BMM, BMN, BMP, BMR, BNA, BPW, BRC, BRE, BRF, BRT, BSS, BUY, BUZ, BVE, BVF, BVG, BVH, BVW
