Engine Timing Tool Kit for BMW N43 | Fits E81 E82 E87 E88 E90 E91 E92 E93 (2006-2012)
Application:
Complete engine timing tool kit designed for BMW 1, 3, and 5 Series models with chain-driven N43 engines.

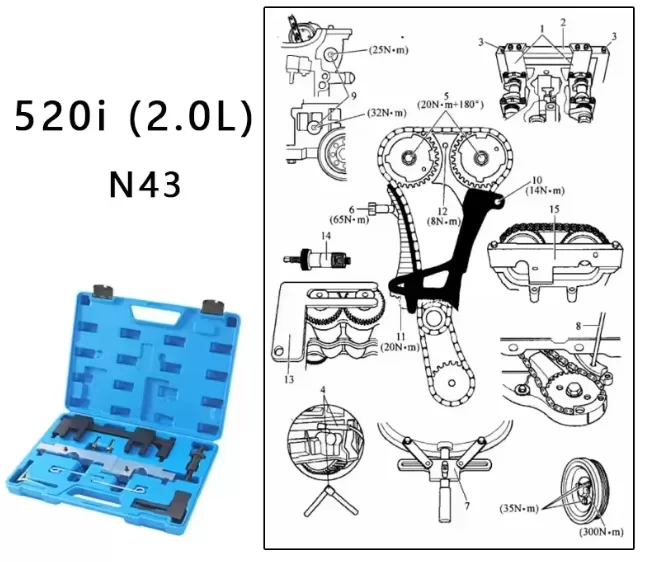

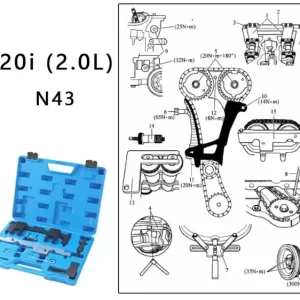

This set is used to check, adjust, and set camshaft timing, as well as remove and replace the timing chain.
Includes the necessary alignment plates and tools to set the sensor position and balance axis alignment.
Compatible Models:
-
BMW 1 Series: E81, E82, E87, E88 (2006-2012)
-
BMW 3 Series: E90, E91, E92, E93 (2006-2012)
-
BMW 5 Series: E60, E61 (2007-2010)
Fits Engines:
-
N43 (B16A/AA), N43 (B20A), N43 (B20AA), N43 (B20AY), N43 (B20KO), N43 (B20UO)
-
Engine codes: N43B16, N43B20
-
Power outputs:
-
90 kW (122 hp)
-
105 kW (143 hp)
-
125 kW (170 hp)
-
OEM & Part Numbers:
113340, 118690, 118691, 118692, 118693, 119340, 119341, 119342, 118710, 118711, 118712, 118700, 115120

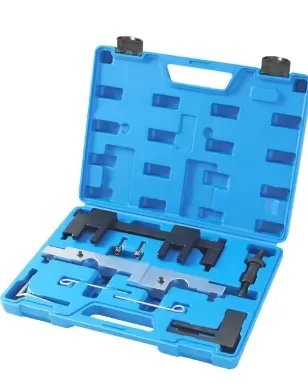

Kit Includes:
-
A: Camshaft Locking Tool (OEM 11 8 690 / 11 8 691 / 11 8 692 / 11 8 693)
-
Aligns camshafts at TDC during assembly.
-
-
B: Sensor Adjustment Tool (OEM 11 8 710 / 11 8 711 / 11 8 712)
-
Adjusts sensor position for proper system function.
-
-
C: Chain Tensioner Locking Pin (OEM 11 3 340)
-
Locks chain tensioner in stowed position.
-
-
D: Balance Shaft Alignment Tool (OEM 11 8 700)
-
Aligns balance shafts correctly.
-
-
E: Steering Wheel Locking Pin (OEM 11 5 120)
