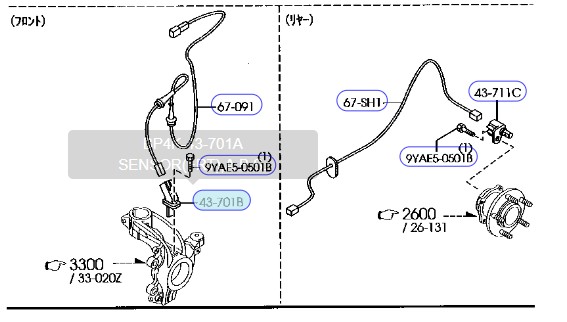

Mazdaspeed 3 Gen 1 ABS Sensor Harness / Short Cord
Wheel Hub To Body Loom
Replacement ABS sensor harness / short cord for Mazdaspeed 3 Gen 1 / Mazda 3 MPS BK.
This is the wiring harness that runs from the wheel hub area back to the body loom / engine bay side of the vehicle wiring. It forms part of the ABS wheel speed sensor circuit and is commonly damaged around the wheel arch, suspension, and hub area.
This listing is for the harness / short cord only.
Common Damage Causes
These harnesses can be damaged by:
Oversized wheels or tyres rubbing through the wiring
Lowered vehicles with poor wheel clearance
Suspension movement pulling on the loom
Dropping the control arm while the harness is still attached
Harness being stretched during suspension or hub work
Broken clips or missing mounting points
Crushed, torn, or rubbed wiring
Previous poor repairs or joins
Accident or impact damage around the wheel hub area
Common Symptoms
ABS warning light
Traction control light
Stability control warning
Wheel speed sensor fault code
Intermittent ABS fault
Warning lights after suspension work
Visible damage to wiring near the hub or wheel arch
Harness pulled tight, stretched, broken, or rubbed through
Poor or no wheel speed signal
Fitment
Listed for:
Mazdaspeed 3 Gen 1
Mazda 3 MPS BK
May also fit other Mazda models depending on year, chassis, position, and side required.
Please send your rego and the position required if you are unsure, and we can check fitment where possible.
Available Options
Front Left
Front Right
Rear Left
Rear Right
Please select the correct position before ordering.
Left and right are based from sitting inside the vehicle, not looking at the car from the front.
What’s Included
1x ABS sensor harness / short cord
Important Notes
This listing is for the ABS sensor harness / short cord only. It does not include the wheel hub, wheel bearing, or ABS sensor unless specifically stated.
Photos are for reference only. Actual item may vary slightly depending on supplier batch or vehicle application.
Professional installation is recommended. Make sure the harness is routed correctly and clipped back into the factory mounting points after installation. Incorrect routing can cause the harness to rub, stretch, or fail again.
JohnnyParts NZ supplies parts only and cannot diagnose ABS faults over messages. If you are unsure whether the harness is the failed part, please have the vehicle checked by a qualified mechanic before ordering.
